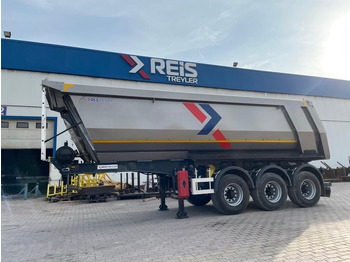

신규 덤프 세미 트레일러 Reis Treyler Premium Aluminum Tipper

HALF PIPE TIPPER SEMI-TRAILER TECHNICAL SPECIFICATION

Chassis

—DOMEX 700 MC Material “I” profile is produced with gas welding; it has high-quality strength and reinforces with cross-beams from 700 MC material

Box

—Build from high-graded HARDOX 450 materials with wall thickness 4 mm x front and rear wall 4 mm x Floor 5 mm

Fifth Wheel Height

—1.150 mm / 1180 mm

King Pin

—2" kingpin and second kingpin position.

—Pin detachable from below, made by SAE standards 8 bolt type.

Over All Length Dimension

—Length, 10714 mm x Width 2550 mm x Height 2986 mm (approximately)

Size of the Bucket

—Length 7300 mm x Width 2325 mm x Height 1450 mm (approximately)

Operator Platform

—There will be an operator platform in front of the superstructure

Axle

—3 x 09.000 kg carrying capacity, REİS brand Drum Brake Type

—First axle with lifting mechanism

—The third axle is fixed

Distance Between Axles

— 1320 mm

Brakes & Suspension

—Air Suspension

—EBS Brake System KNORR brand, (2S/2M RSS)

— Automatic Slack Adjuster

Landing Gear

—Double Speed

—24000 kg carrying capacity

—Mechanical Landing Gears OMS BRAND

Rear Bumper

—Suitable 70/221 / AT-version of the rear bumper

Tires and Rimes

—6 PCS 385 / 65 R 22,5 Single tire type

—Pirelli, Lassa brand, or equivalent premium brand

— 120 offset 22,5 x 11,75 Rim, 280,8 x 335 x 10-wheel stud M 22 x 1,5

Mud Cover

—6 PCS. Plastic mudguards with plastic edges.

Spear Wheel Carrier

—1 PC tire carrier Reducer type

Toolbox

—1 PC Plastic 60 cm Toolbox.

Paint

—Steel Material surface is cleaned by grit metal and sent, which is shot blasted on the surfaces of the metal.

—2 Floor Epoxy primers are made and finally painted with RAL 7016 or according to the demand of the customer

Electrical System and Lightening System

—3 unit’s amber-colored lights were placed on both sides

—Park lamps at the rear side of the vehicle

—License plate lamps,

—Reflector triangles,

—Flameproof electrical system

—2 X 7-pin and 1 x 15-pin electrical socket. (The connection pins will be mounted on a specially designed front panel)

—Electrical system is ASPÖCK brand Euro point 2 or Euro point 3

Equipment (Tools)

—Toolbox keys

Accessories

—1 Unit Fire extinguisher box

—2 Units of Tire Chocks

—Ferry rings on the rear and front total 4 Units

—Aluminum Side Protection

—Document holder

Hydraulic System

—5 stages Cold Shooting Steel Profile and Dual Lift with stroke GHS 175 X 5 X 5550 C type HIDROMAS brand. Front lift cylinder with mounting brackets

—WITHOUT OIL TANK AND HYDRAULIC VALVES

Volume

—30 m³
