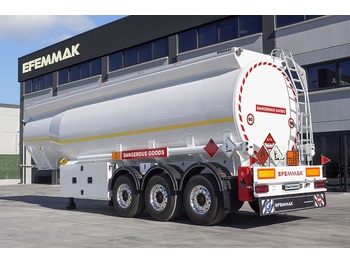

EFEMMAK E.FAST.GN.38.5

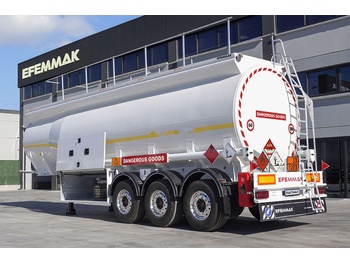

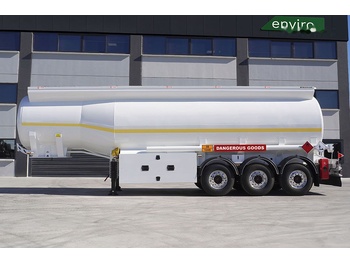

ADR ALUMINUM FUEL TRAILER Net 36.000 liters capacity

The ADR Aluminum Fuel Semi-Trailer, with a gross capacity of 38,000 liters in 5 compartments, is designed for optimal fuel transportation solutions to meet specific requirements. It is engineered for maximum efficiency and safety.

Complies with ADR EN13094 standards, LGBF tank code, and ADR Class 3 hazardous material regulations. It is manufactured to adapt to diverse geographical regions, climates, and road conditions.

Effectively meets all operational needs with optimized fuel carrying capacity and reduced fuel consumption.

The dimensions, weights, and volumes mentioned in the descriptions are tolerance values. We reserve the right to make changes in accordance with DIN 70020 due to technical developments or legal regulations.

GENERAL

Length (L): 10,650 mm

Width (W): 2,550 mm

Height (H): 3,800 mm

Tank Diameter (D): 2,300 mm

Weight (Empty Vehicle): 5,450 kg (±%3)

Wheelbase (WB): 6,750 mm

Distance Between Axles (A): 1,310 mm

5th Wheel Height (H5): 1,220 - 1,250 mm

Rear Overhang: 2,755 mm

Operating Temperature: -20°C to +50°C

TANK

Tank Code: LGBF CLASS 3

Certificate: Declaration of Conformity to ADR (with inspection report as per request)

Transport Material Code: UN 1202 – 1203

Tank Gross Volume: 38 m³

Air Gap: 5%

Tank Net Volume: 36 m³

Compartment Quantity: 5 compartments (11,500 – 7,500 – 6,500 – 5,000 – 5,500 liters)

Tank Shape: Gooseneck

Tank Material: Aluminum Elval EN AW 5182-H111 Series

Tank Thickness: 5 mm

Test Pressure: 0.46 bar

Welding: Single-pass automated body welding compliant with ISO 3834-2 standards

CHASSIS

Two special extrusion profiles made from high-strength aluminum alloy provide superior quality and durability, featuring a design by Efemmak to ensure optimal performance and reliability.

Axle: SAF brand 9 tons x 3, air suspension

Axle Load: 27,000 kg

King Pin: SAF brand 2”

King Pin Capacity: 12,000 kg

Axle Lifting System: First axle lift system that operates automatically based on the air cushion pressure and speed values entered from the EBS data

Axle Lift Control: The remote-controlled electronic air suspension also allows for manual operation of the first axle lift

Tires: 6 pcs Bridgestone ASFALT brand 385/65 R22.5

Rims: 6 pcs ALCOA LVL brand, aluminum

Spare Tire & Rim Location: On the driver’s side of the compartment

Wheel Nut Caps: 10 caps per wheel, totaling 60 caps

Brakes: Dual circuit electro-pneumatic WABCO brake system with EBS 2S/2M anti-lock system, compliant with UN ECE R13 regulations and integrated RSS electronic stability control system

TPMS: Tire Pressure Monitoring System for continuous monitoring of tire pressure, enhancing safety and performance

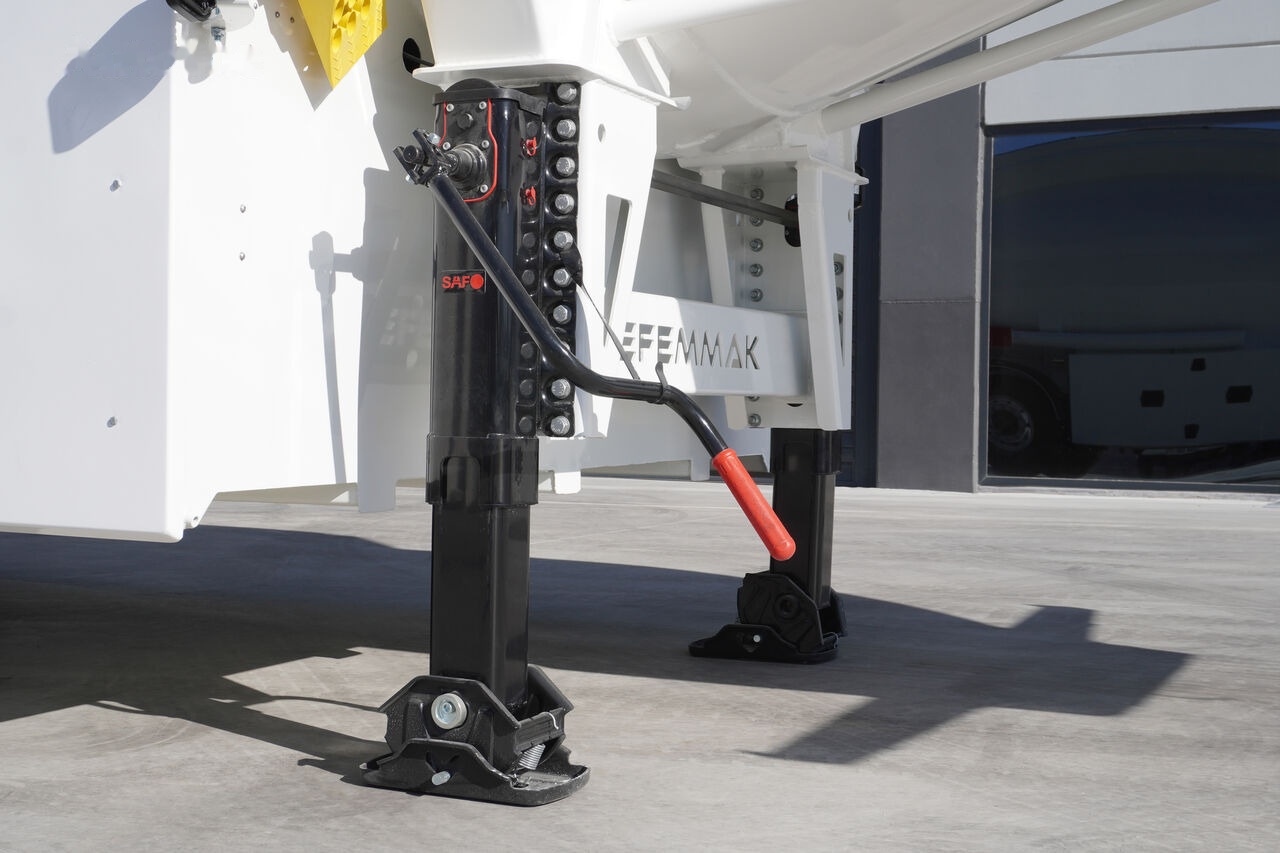

Landing Legs: SAF brand 24 tons

Rear Bumper: Compliant with R58 safety regulations

COMPARTMENT

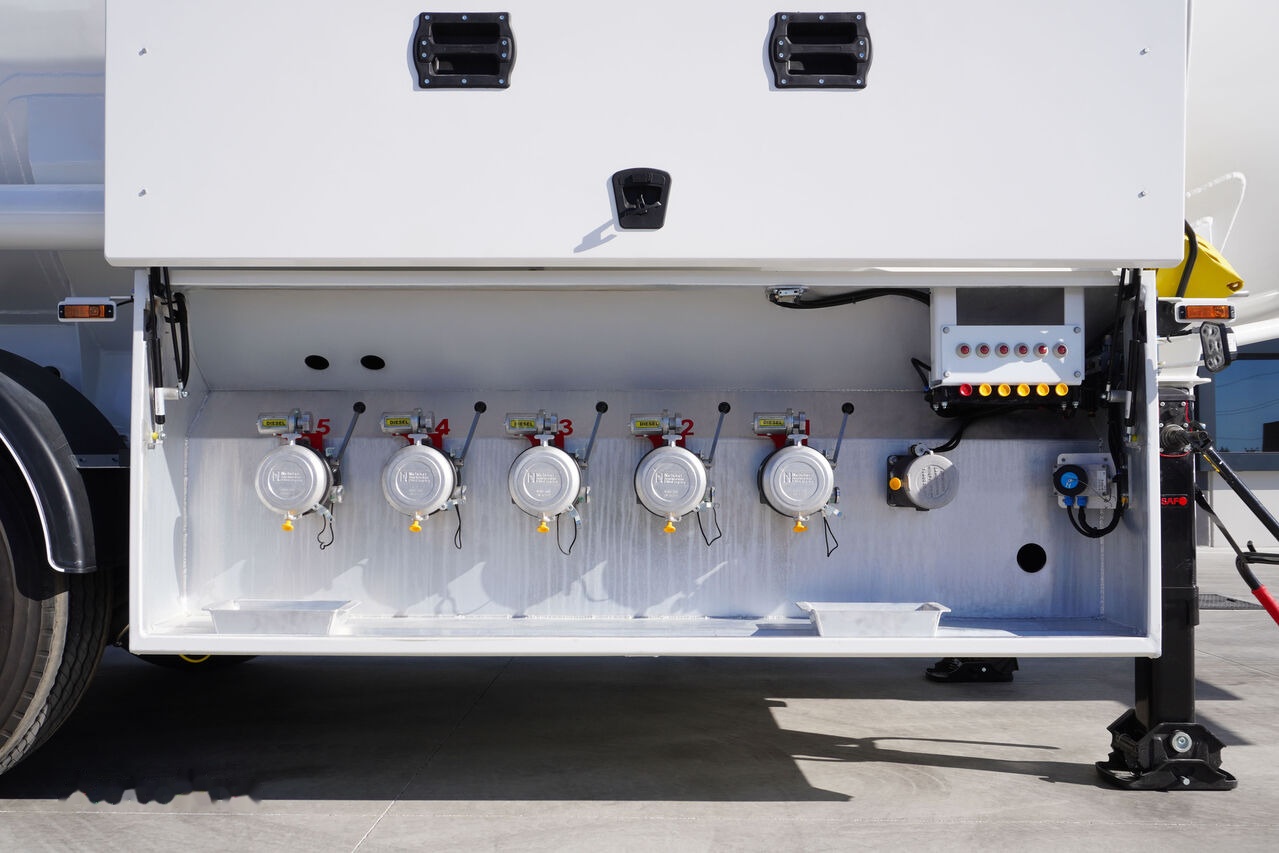

Compartment: Aluminum-made, double-type, lockable, integrated with the braking system to ensure the vehicle does not move when the compartment is open

Armature Set: Niehüser (Suitable component for ADR Class 3)

Filling System: Filling from the 250 mm diameter top manhole or from the API valves in the compartment

ELECTRIC

Electrical System: 1×15 pin and 2×7 pin sockets, compliant with UN ECE R 48 and ADR regulations

Lighting System: ASPÖCK lighting installation featuring 24V LED side position lamps and rear gear lamps

Emergency Stop: 1 on each side of the tank and 1 in the compartment, total 3 pcs

Grounding Reel: Automatic 15-meter grounding cable in the compartment

Overfilling Sensor: Niüsher brand, bolt-on or self-connected manhole cover with overflow safety sensor

Height Level Connection Socket: Niüsher brand 10-pin socket with a protective cover in the compartment

OTHER

Handrail: Manually operated railings on the stair side and pneumatically operated railings on the opposite side

Walkway and Ladder: Perforated, non-slip, UV-resistant aluminum structure; ensures safe use on the tank and when accessing the tank

Pool Drainage: 2” diameter aluminum piping, passing through the body of the tank

Manhole Cover: Niüsher brand, 500 mm width, 250 mm cover, breathing valve, concealed-type air inlet connected, aluminum casting with NBR & VITON gasket

Top Vapor Valve: Niüsher brand, bolt-on, 3” diameter aluminum casting air flow filling and draining unit with NBR & VITON gasket

Vapor Return Valve: Located in the compartment, 4” diameter aluminum-bodied, suitable for high-flow & low-pressure, with NBR & VITON gasket

Atmospheric Vapor Valve: Niüsher brand, located on the tank's top, at the end of the vapor return lines, a 3” diameter device that provides air into the tank during pressurized and gravity drainage, preventing pressure caused by temperature variations

Bottom Valve: Niüsher brand, 4” diameter aluminum casting body, pneumatic control, suitable for high flow rate

Bottom Valve Control Unit: Niüsher brand control unit located in the compartment

Discharge Valve: Niüsher brand, aluminum casting, connected to the ends of drain lines located in the compartment

Hose Holder: Aluminum-made, lockable side holders

Hose: 3” diameter, maximum length of 6 meters, fuel-resistant, with female ends—one on the right and one on the left, total 2 pcs

Accessories:

2 pcs plastic wedge

2 pcs 6 kg fire extinguisher in its box

ADR plates

1 pcs copper hammer

1 pcs shovel

2 pcs drip cup

1 pcs cam lock adapter from 4” to 3”

3 pcs traffic warning cones

Reflective Strips: Compliant with UN ECE R48 regulation, featuring yellow reflective strips along the sides of the vehicle and red reflective strips at the rear

Paint: Single-color, three-stage process including surface preparation, primer, and finish coat
