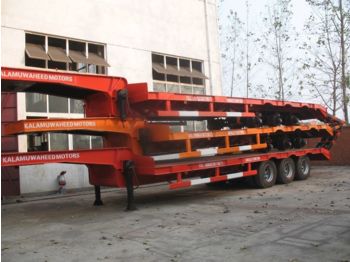

신규 저하대 세미 트레일러 CHEREAU 40T.50T.60T.70T.80T

3 Axle Lowbed Trailer

Dimensions:13000*3000*1850

Tare Weight:7.5T

Payload:60T

lowbed/lowbed truck trailer, 3 axle low bed trailer, excavator carrying trailer

1.Factory sales

2. Lowest price

3.High Quality

4. Best service

5.Passed ISO and CCC certification

Specification:

Type

Low bed semi trailer

Dimensions:

(LxWxH)

13000×3000×3150mm(Outside)

Weight:

Tare Weight

5.5T-10T

Payload

30T-60T

Axle Weight Load

13T/14T/16T/20T per axle

Specification:

Axle number

Three

Axle specs.

FUWA /BPW brand

Suspension

mechanical suspensions

King Pin

Jost 50#/90# traction pin

Landing Leg support

Jost D200T / fuwa 28 ton

Rim

9.00*22.5 Zhengxing Brand 12 pieces

Steel Spring

10pieces

Tire:

Tire specs.

12.00R22.5 Triangle Brand

Number of Tire

12pieces

Spare Tire Carriers

2 pieces

Frame:

(specs. and materials)

Main frame is height 480-500mm .

Frame Beam

Upper and lower plate is20mm,middle is8mm(Double plate).

height is 480-500 mm,Material is Q345 low alloy steel

Frame Floor

The Thickness is 3mm flat bed,Material is Q235 Carbon Steel

Brake:

Brake

Kemi Brand of China

Brake Chamber

Two double and two single chamber

ABS

Kemi Brand of China(4S/2M)

Electrical:

Voltage

24V

Receptacle

7 ways(7 wire harness)

Painting process:

Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime,

2 coats of final paint

Miscellaneous:

Side Guard

According to the requirement of the buyer

Major Export Market:

Russia, Mongolia, Tanzania, Kenya, etc.Europe , Asia and some Africa countries
