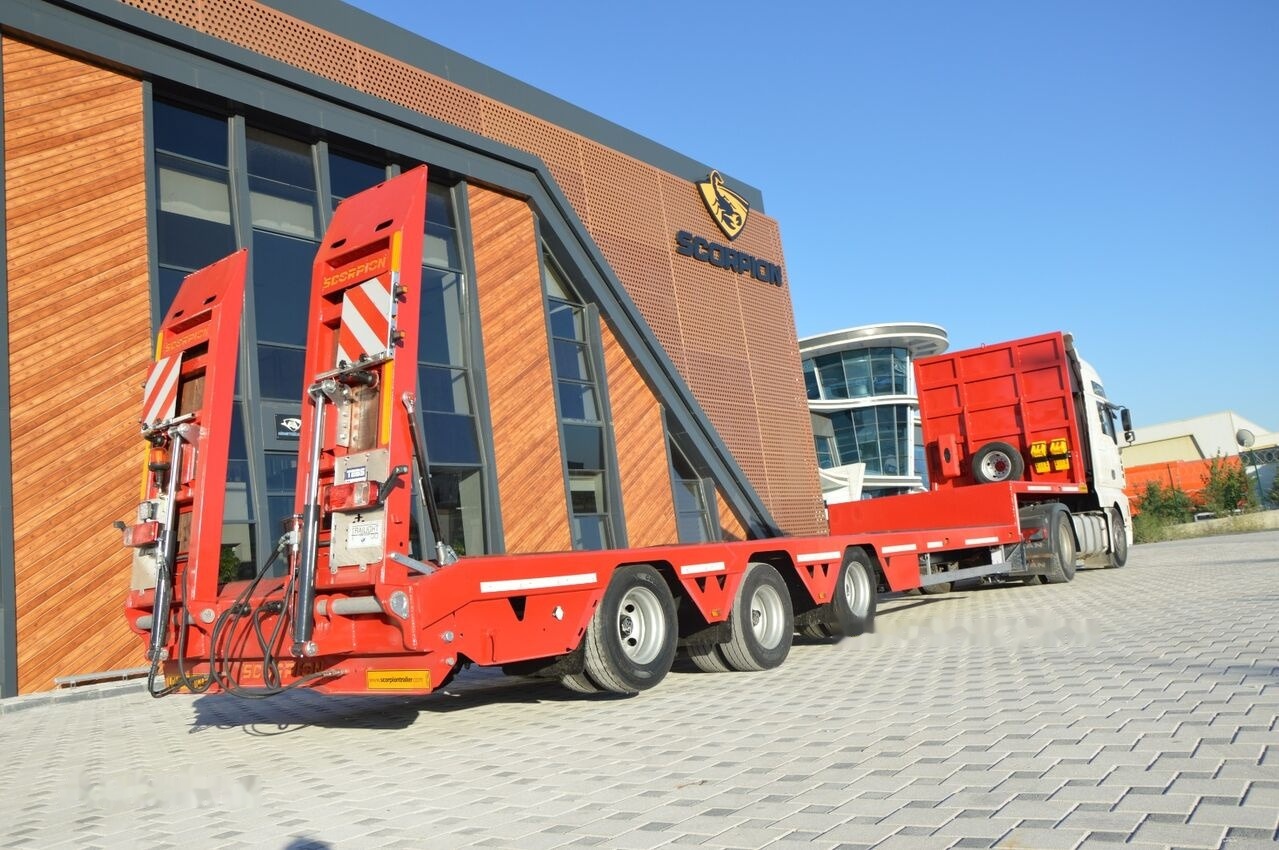

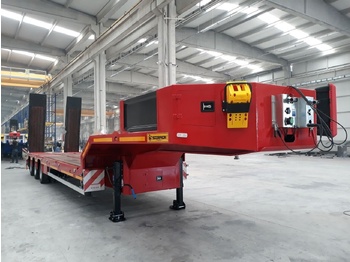

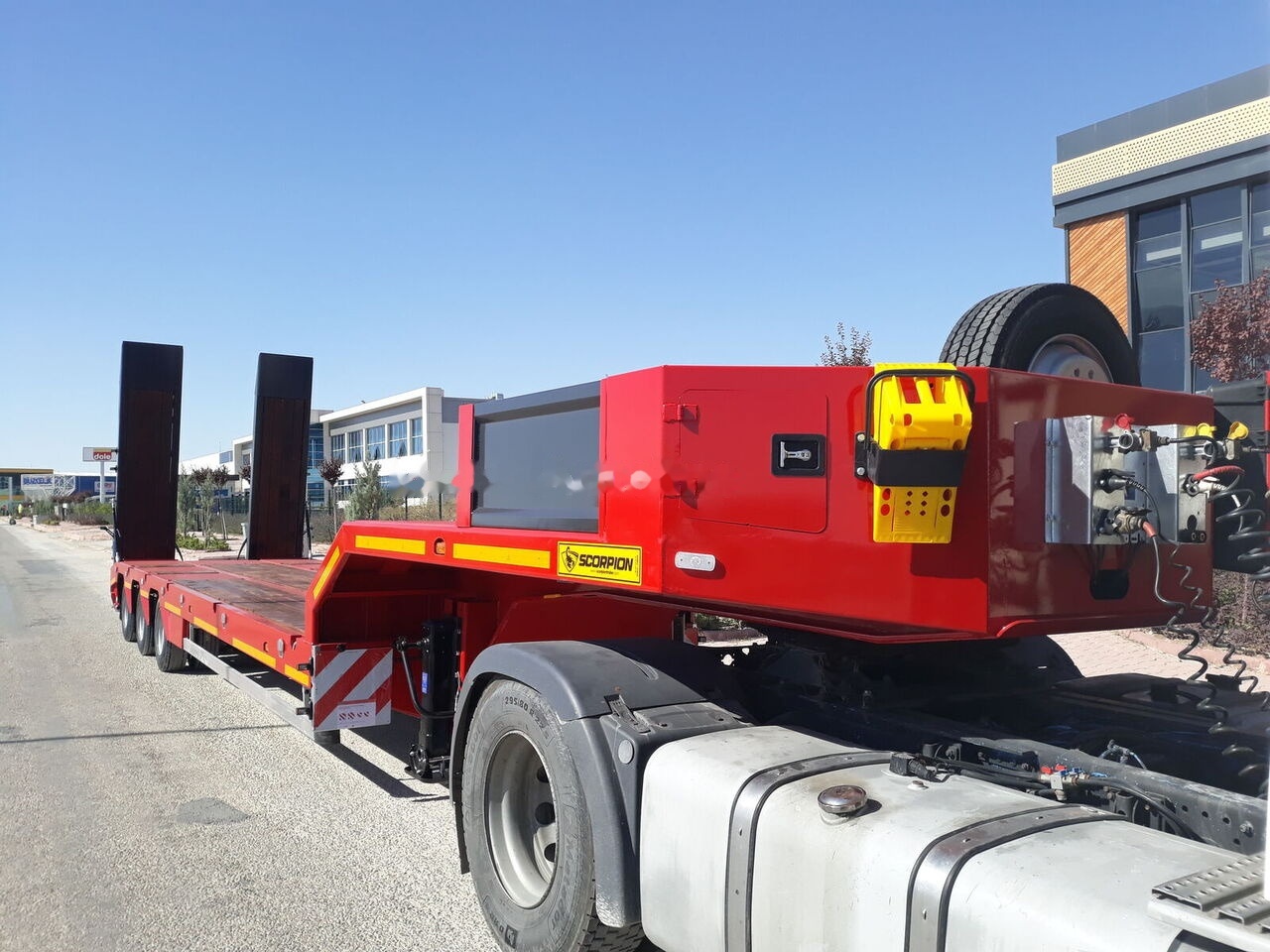

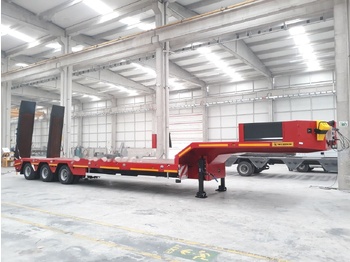

리스 Scorpion Trailer 2024 NEW 3 AXLE (MANUFACTURER COMPANY)
게시됨: 7월 2날
게시됨: 7월 2날
Turkey, KonyaTECHNICAL FEATURES
Chasis : High Resistance Steel
Brake System : 71/320/ECC Suitable to KNORR-Bremse 4S/2M, double electro pneumatic brake system
Electrical System : 76/756/ECC Suitable to 24 volt lightning system
Front Legs 24 ton capacity mechanical legs,50ton static capacity
Rear Legs : Manual foldable legs, 45 ton static capacity
Tyre Dimensions : 295/60/22,5 tyres & steel discs
Axle and Suspension : 2 Stable1 axle lifting up (manual controlled) brake drum with air Suspension 14 ton capacity
Floor : 50 mm thickness hard wooden floor and steel covered over of tyres
Side Extension : 300 mm galvanised coated steel brackets (with 100 mm parts)
Rear Ramp : 2 pcs square figured hydraulic ramps moving to sides is mechanicalRamp Bevel : 12°
ADVANCED FEATURE
DExtensive Ramp Options
Below features are optioned ;
4260 mm lenght ramps
Side Sliding hydraulic ramps
Galvanise steel grille type floor ramps
Portable aluminium ramps
Technical Features
5th Tyre Height : 1.300 mm
Axle Distance : 7.300 mm
Total Vehicle Lenght : 13.040 mm
Steering Drag Link Lenght : 3.200 mm
Platform Lenght : Mn: 11870 mm
Mx: 18.000 mm
Platform Height (Loaded) : 1000 mm
Total Width : 2550 mm – 3600 mm
LoadSade
Lowbed has below load safe tools
3x2 load fasten rings 6 ton capacity at steering drag link
4x2 load fasten rings 6 ton capacity at platfrom area
8x2 load fasten rings 6 ton capacity at side chasis
