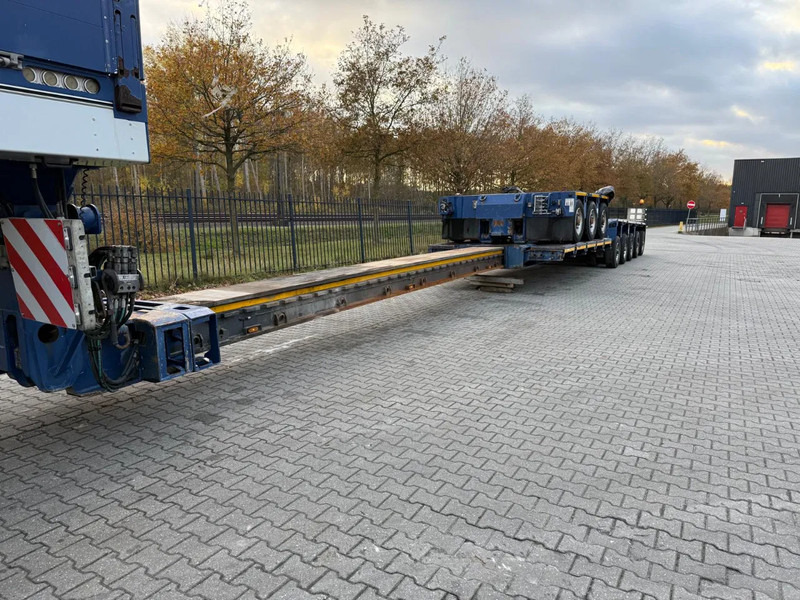

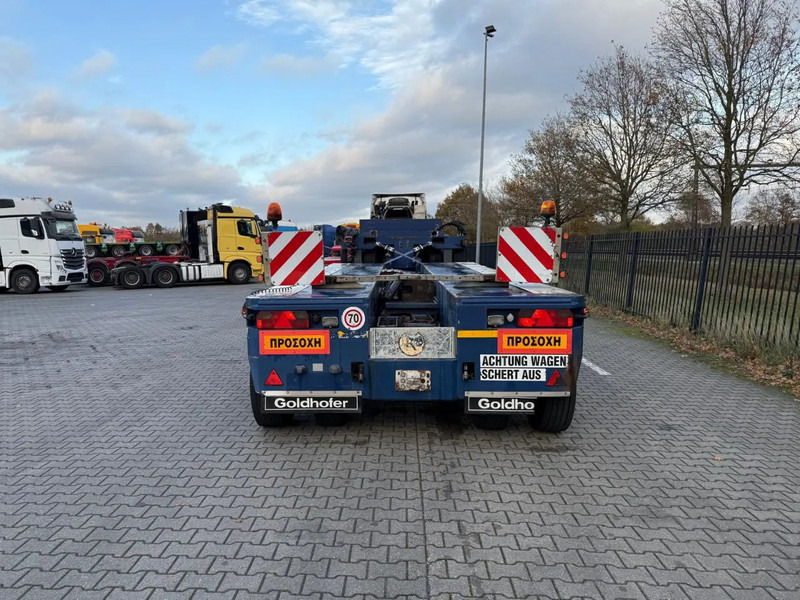

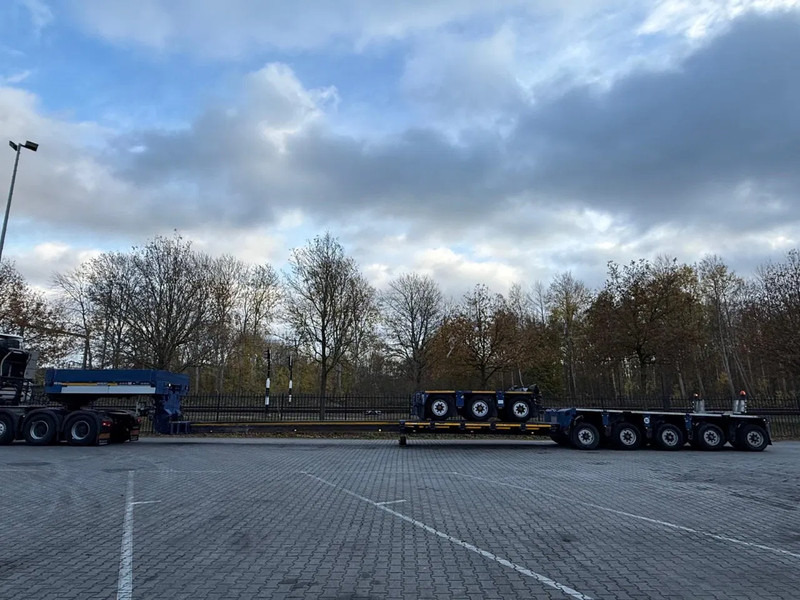

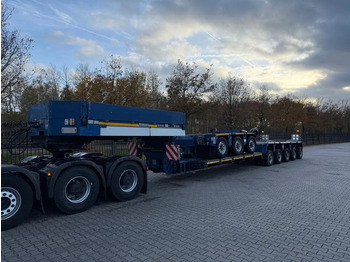

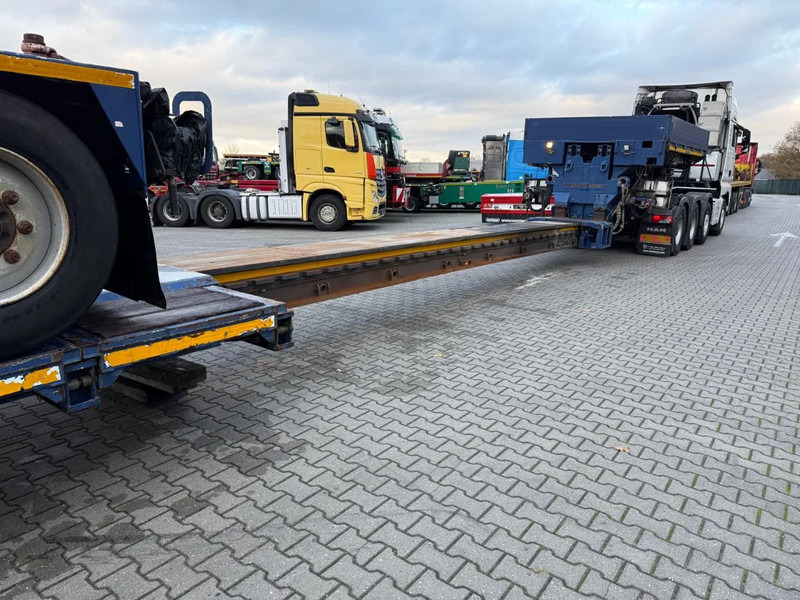

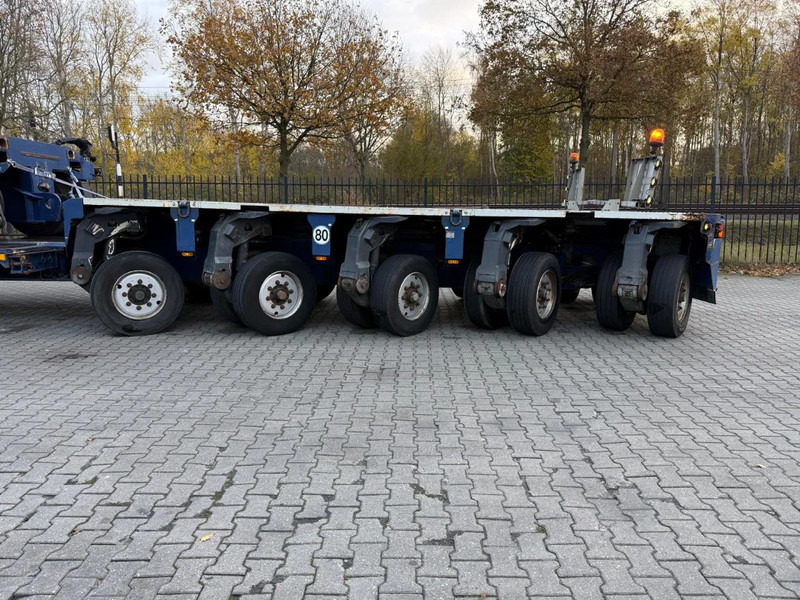

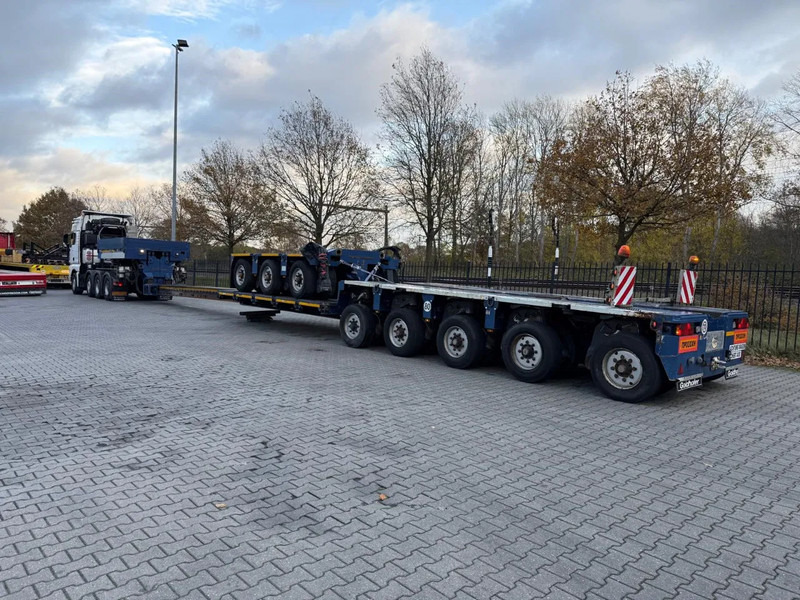

리스 Goldhofer THP XLE 8 (3+5)

게시됨: 5날

리스 Goldhofer THP XLE 8 (3+5) Goldhofer THP XLE 8 (3+5) : 사진 2

리스 Goldhofer THP XLE 8 (3+5) Goldhofer THP XLE 8 (3+5) : 사진 3

리스 Goldhofer THP XLE 8 (3+5) Goldhofer THP XLE 8 (3+5) : 사진 4

리스 Goldhofer THP XLE 8 (3+5) Goldhofer THP XLE 8 (3+5) : 사진 5

리스 Goldhofer THP XLE 8 (3+5) Goldhofer THP XLE 8 (3+5) : 사진 6

리스 Goldhofer THP XLE 8 (3+5) Goldhofer THP XLE 8 (3+5) : 사진 7

리스 Goldhofer THP XLE 8 (3+5) Goldhofer THP XLE 8 (3+5) : 사진 8

리스 Goldhofer THP XLE 8 (3+5) Goldhofer THP XLE 8 (3+5) : 사진 9

리스 Goldhofer THP XLE 8 (3+5) Goldhofer THP XLE 8 (3+5) : 사진 10

리스 Goldhofer THP XLE 8 (3+5) Goldhofer THP XLE 8 (3+5) : 사진 11

리스 Goldhofer THP XLE 8 (3+5) Goldhofer THP XLE 8 (3+5) : 사진 12

리스 Goldhofer THP XLE 8 (3+5) Goldhofer THP XLE 8 (3+5) : 사진 13

리스 Goldhofer THP XLE 8 (3+5) Goldhofer THP XLE 8 (3+5) : 사진 14

게시됨: 5날

브랜드

GOLDHOFER

제조 연도

2012

순 중량

28450 kg

총 중량

139000 kg

탑재량

110550 kg

색상

파란색

위치

Netherlands, Pottenbakkerstraat 40 9403VX Assen The Netherlands

섀시/서스펜션

텔레스코픽 프레임

더 많은 정보

Main Features

Manufacturer: Goldhofer

Type: THP / XLE 8 (3+5) Low Loader

Chassis number: WG0THPX57B0030736

VIN Gooseneck: WG0SH0005B3030736

VIN XLE 3: WG0XLE034B0035242

VIN XLE 5: WG0THPX57B0030736

Year: 2012

Weights/Loading Capacity

King-Pin load: 27.000 kg

Axle load: 14.000 kg

Total axle load: 8 x 14.000 kg = 112.000 kg

GVW: 139.000 kg

Empty weight: 28.450 kg

Loading Capacity: 110.550 kg

Axles

BPW Pendle Axles

Axle distance: 1360 mm / 1400 mm

EBS/ABS

Tyres: 285 / 70 R19.5 (150/148J)

Hydraulic steering and suspension

Radio remote control

Dimensions

Total length: 21.200 mm

Loading floor length: 6.000 mm

Loading floor extension: 8.500 mm

Max loading floor length: 14.500 mm

Loading floor thickness: 450 mm

Loading floor clearance: 200 mm

Loading floor width: 2.750 mm / 3.250 mm

Bogie width: 2.750 mm

Bogie height: 1.240 (+/- 300)

Excavator boom recess: 700 mm

Additional Information

Hydraulic operated on truck PTO

King pin 3,5”

Central greasing

Remote control operated

Detachable gooseneck

Hydraulic quick couplers

Marker boards oversize loads

Working lamps

Orange warning light

Ramps for loading on floor

Extra tables for extanding loading floor

More information

Year of manufacture: 2012

Price: On request

Please contact Mark Hilbolling (+31623926235, info@deborg.com), Mark Hilbolling (+31623926235) or J.A. Gejas (+31592346820) for more information
