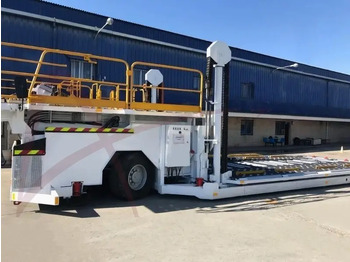

항공기 화물 로더 TREPEL CHAMP 350

TECHNICAL DATA:

1. Upper deck: 707, 727, 737, 747, 757, 767, 777, 787, DC-9, DC-10, MD-11, MD-80, L-1011, A300, A310, A320, A330, A340, A350, A380, IL76

2. Lower Deck: 707, 727, 737, 747*, 757*, 767*, 777, 787*, A300*, A310*, A320, A330*, A340*, A380*, BAE-146, DC-8, DC-9, DC-10*, MD-11*, MD-80, L-1011*

3. Capacity: Main platform (MPF) 35,000 kg (77,263 lb) lift and transfer capacity

Front platform (FPF) 35,000 kg (77,263 lb) transfer capacity

4. Engine: Deutz Diesel Engine TCD 3.6 L4 COM V 100 KW, 4 cylinders, liquid-cooled

5. Max. drive speed: 15 km/h ; towing speed: 6km/h

6. Turning radius: 16 000 mm

MORE TECHNICAL INFORMATION AVAILABLE ON REQUEST.

PLEASE DON'T HESITATE TO CONTACT US IN CASE OF ANY QUESTIONS.
