신규 모바일 크러셔 FABO Mobile crusher

• All of our products are made with care and covered for 1 year warranty!
• Installation and Operator Training FREE

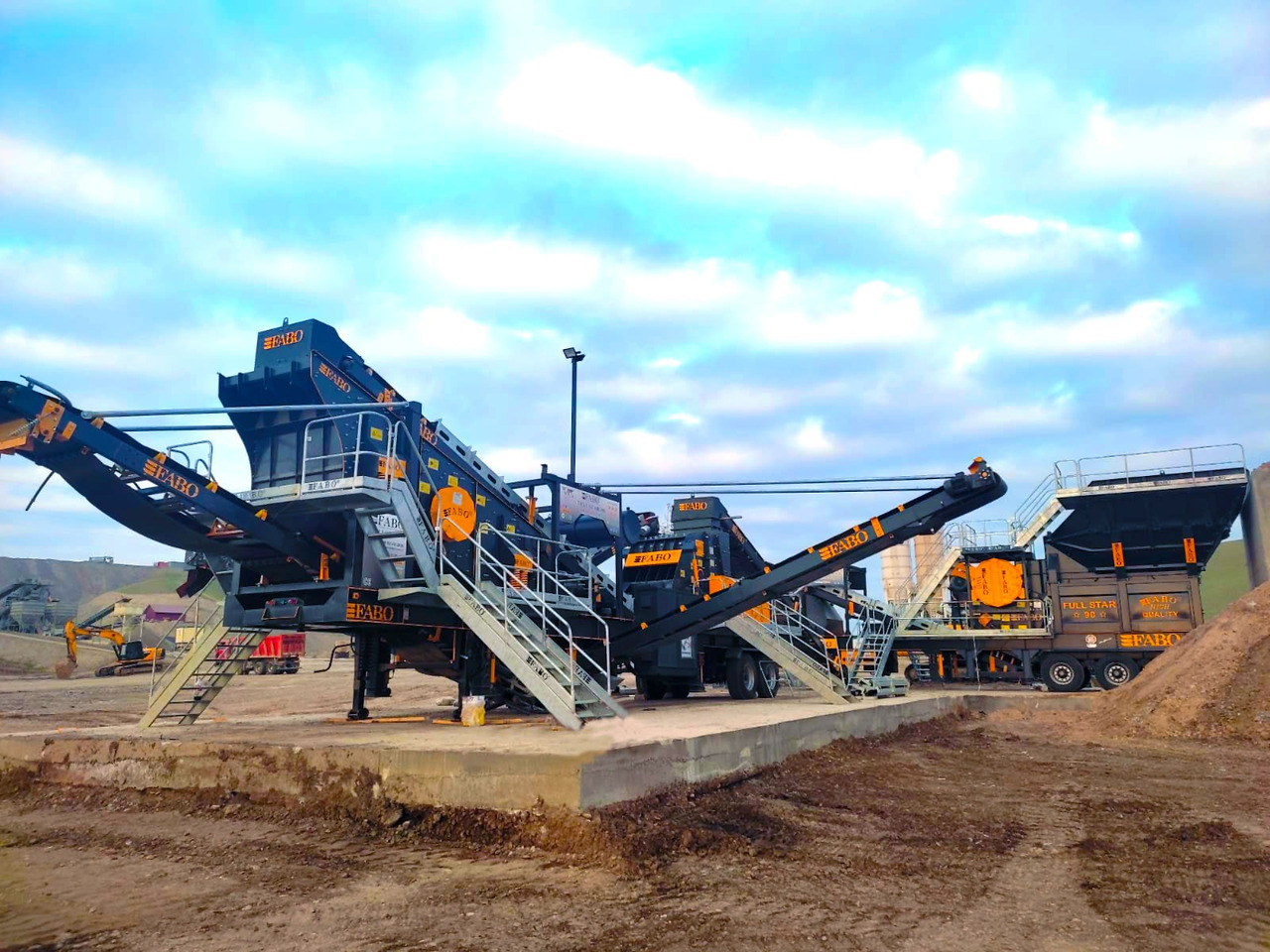

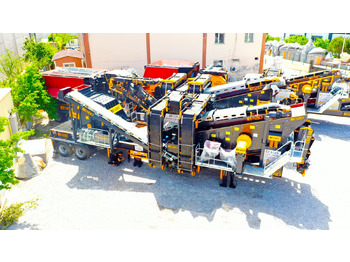

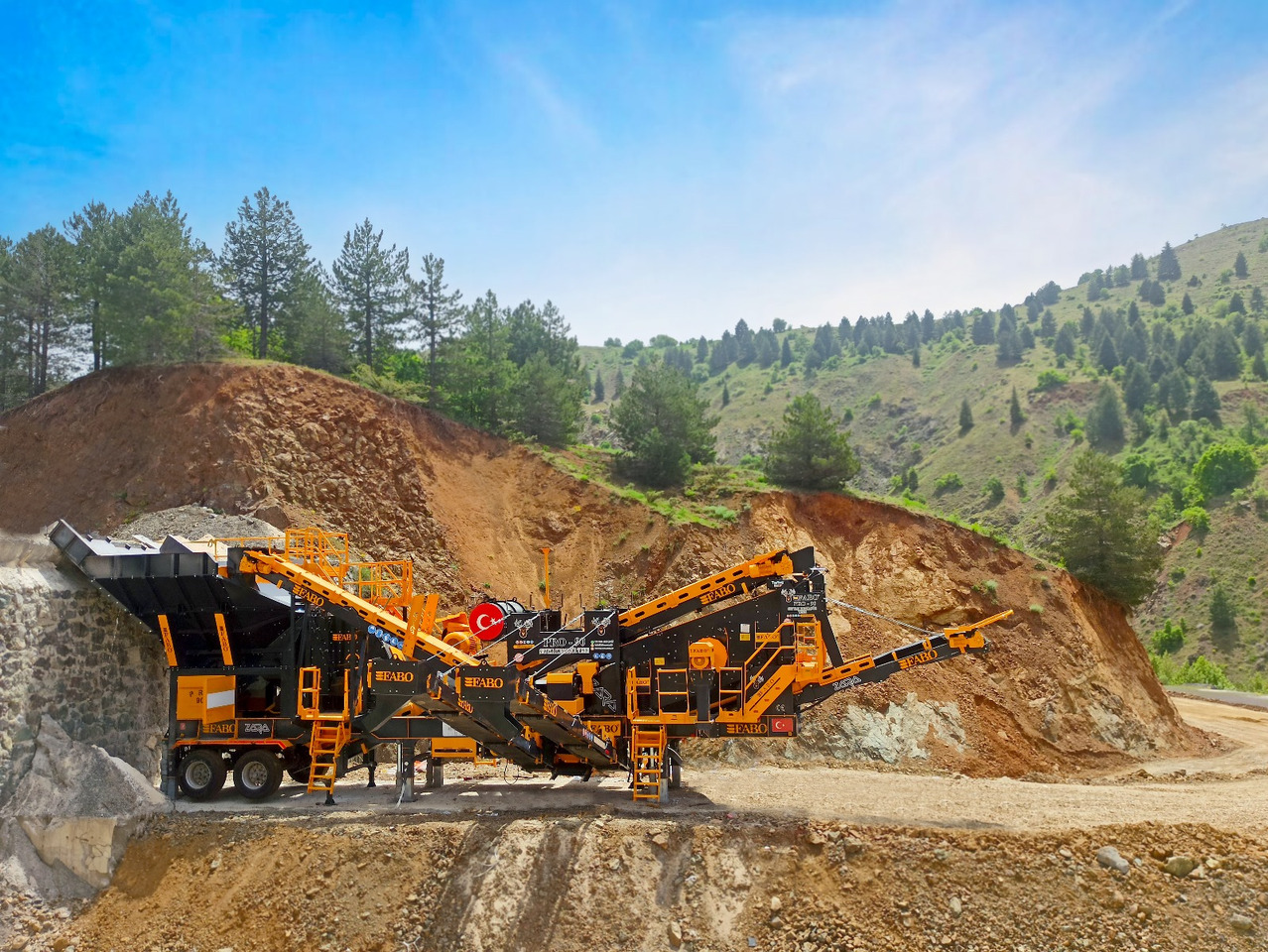

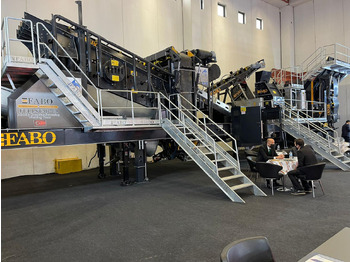

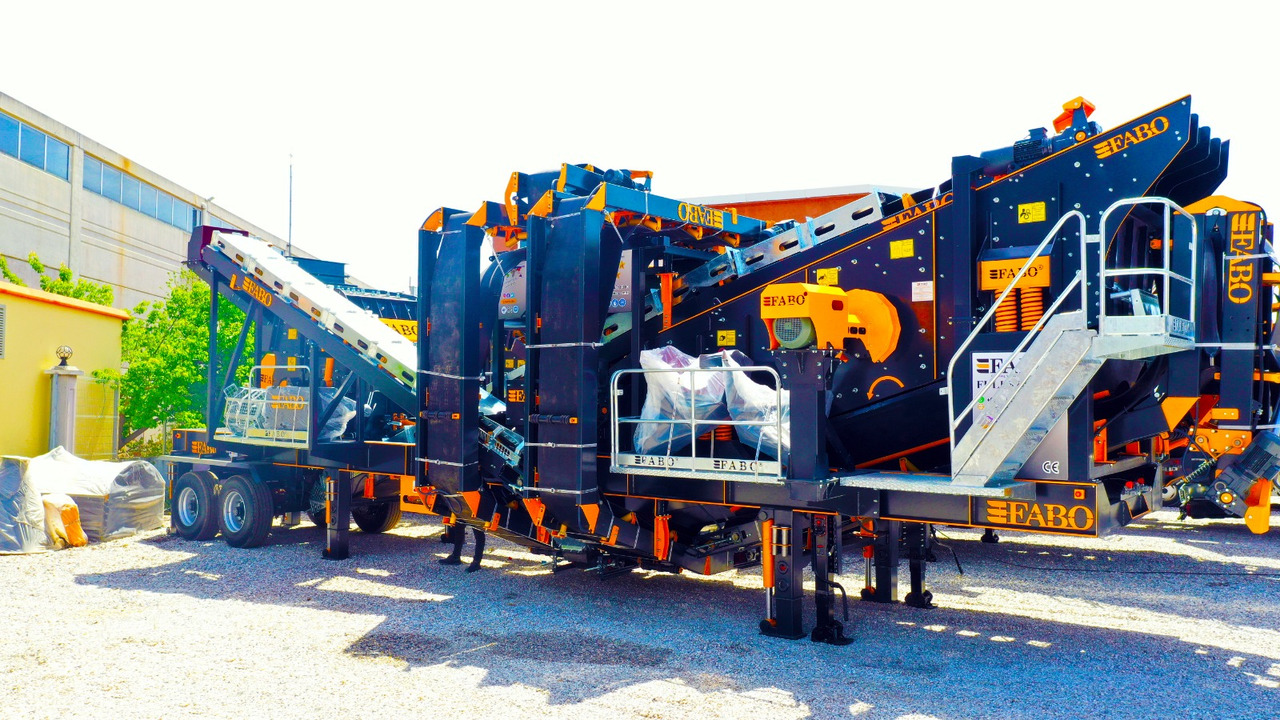

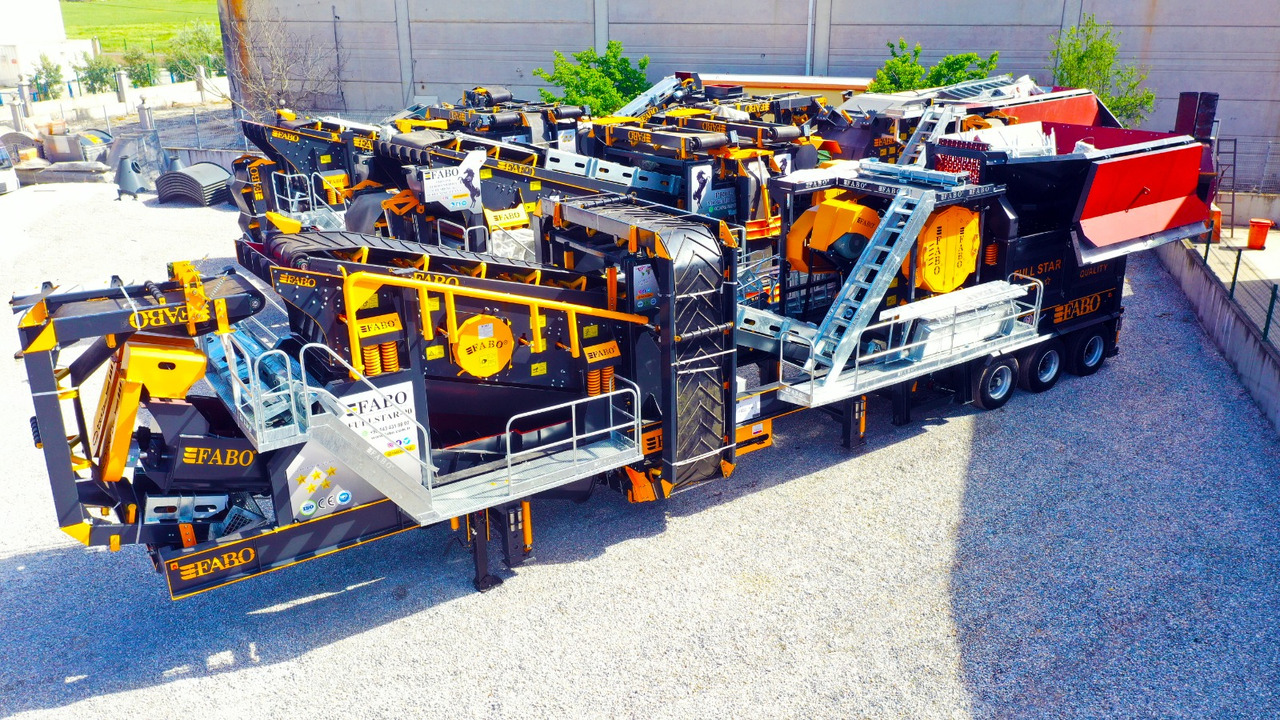

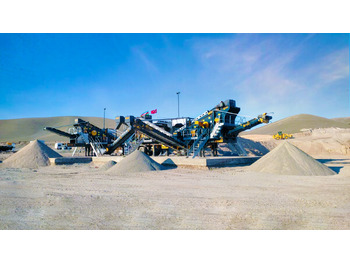

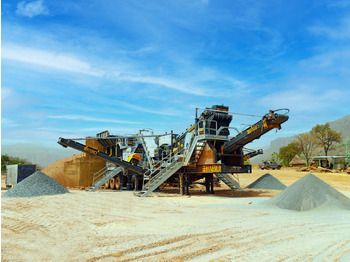

FABO MCK-65 is small efficient model of MCK series, those are a mobile type & closed circuit crushing and screening plants that is used for processing of hard materials such as basalt, granite, gabbro, dolomite and other types of hard stones. MCK-65 includes two stages of crushing process which is made by primary jaw crusher and cone crusher.

TECHNICAL SPECIFICATIONS:

- Bunker: 12 m3

- Plant Dimensions: 21000x4650x4650 mm

- Production Capacity: 60-80 Tons Per Hour

- 1st Crusher: Jaw Crusher – 600x400 mm

- 2nd Crusher: Cone Crusher (FABO CC 100)

- Maximum Feeding Size: 380 mm

- Vibrating Screen Size and Deck: 1300x4000mm 3-4 decks

- Total Motor Power: 185 Kw

- Generator (optional): 300 kvA

MCK-65 IS A COMBINATION OF:

• Bunker(Hopper)

• Vibrating Grizzly Feeder (bypass)

• Primary Jaw Crusher

• Cone Crusher

• High Stroke Type Vibrating Screen

• Folding type feeding, feedback, bypass and stock conveyor belts

• Hydraulic feet

• Mobile Chassis with axles and tires

• Fully Automation System

• Dust Suppression System

• Easy walking platforms for maintenance

• Diesel Generator (Optional)
