신규 임팩트 크러셔 FABO impact crusher

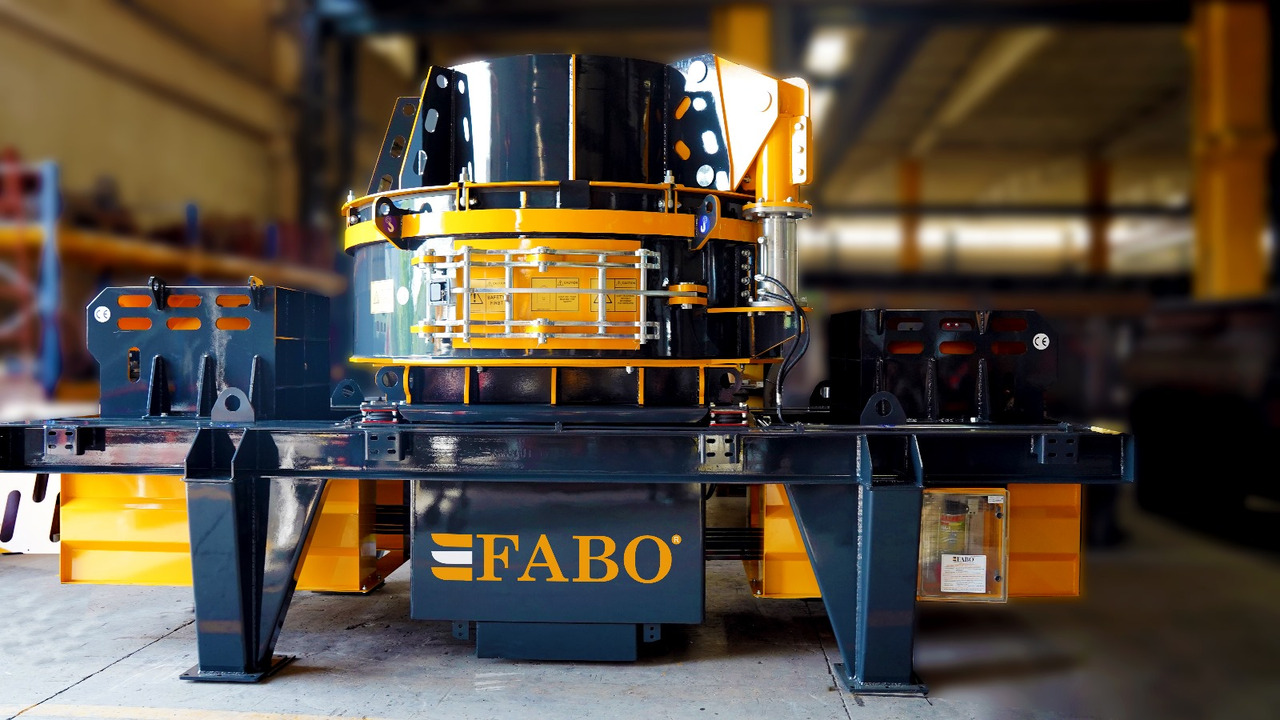

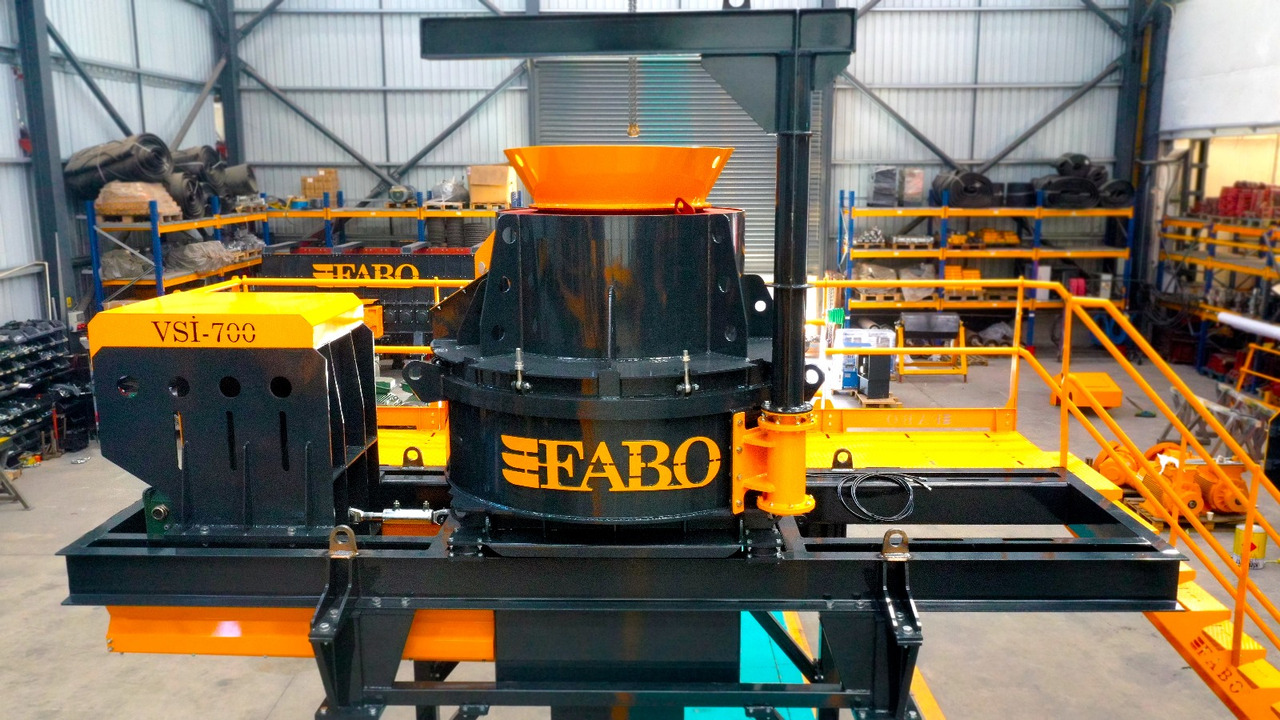

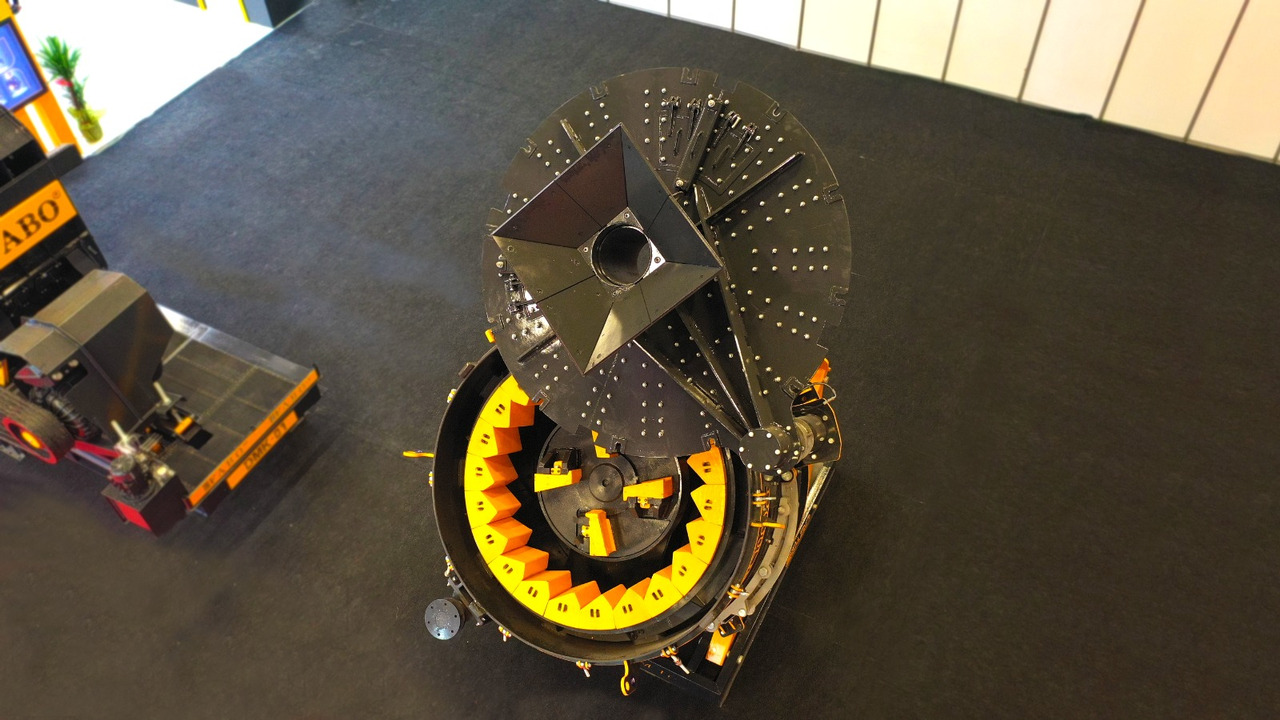

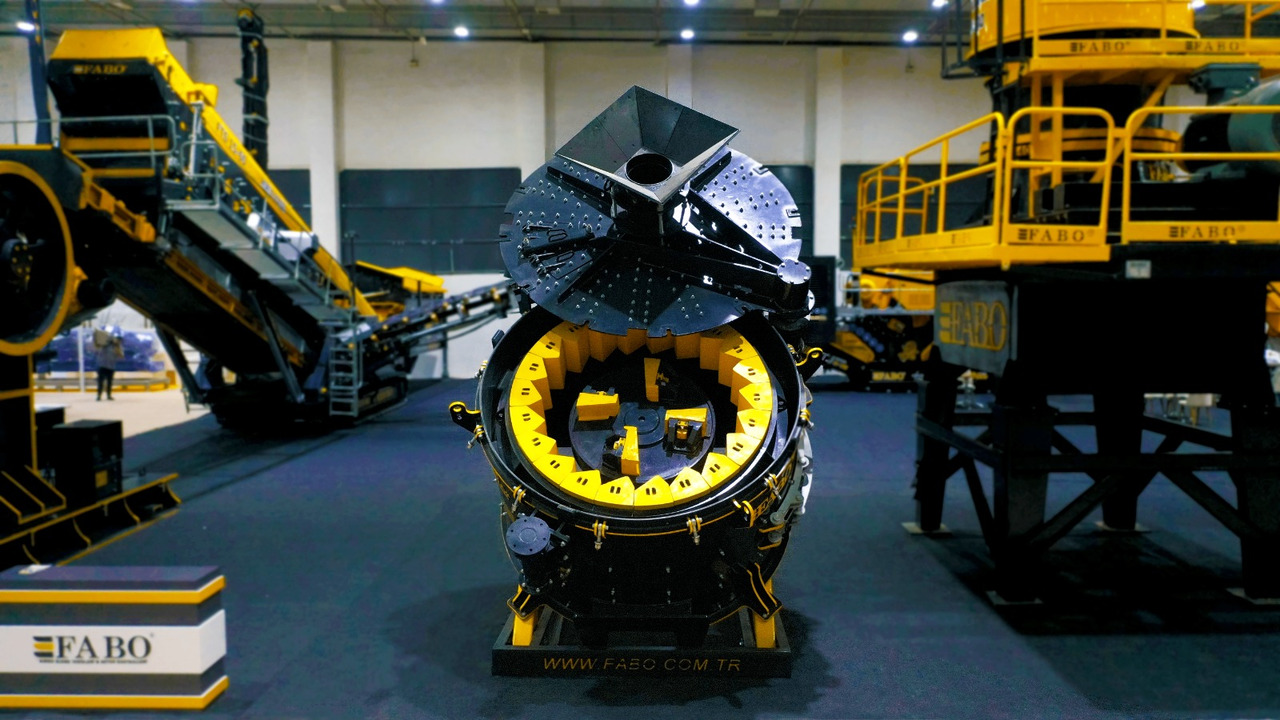

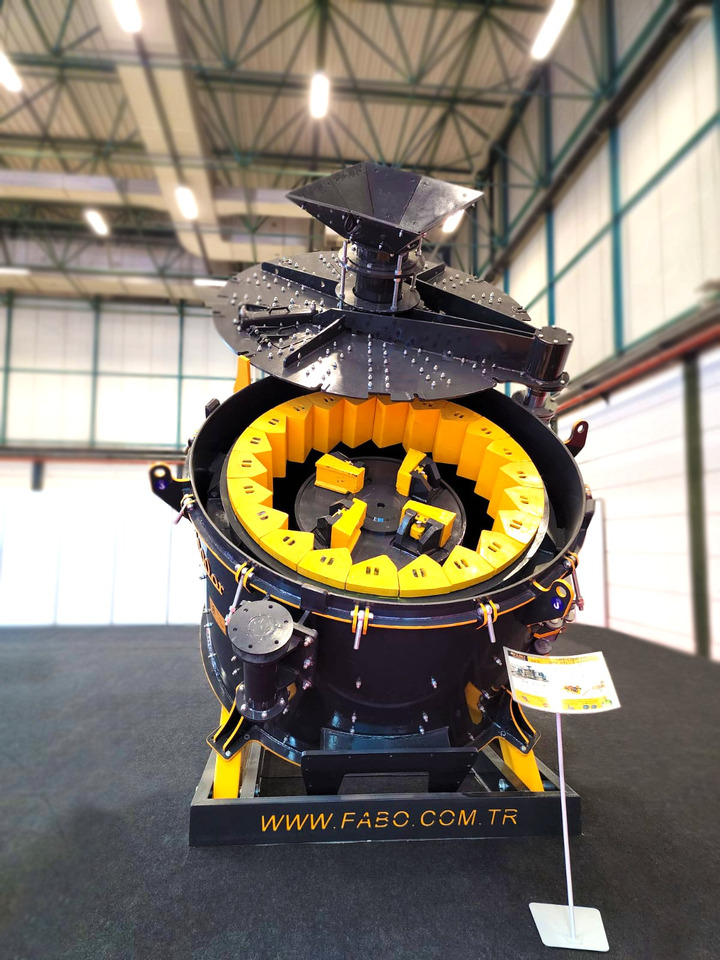

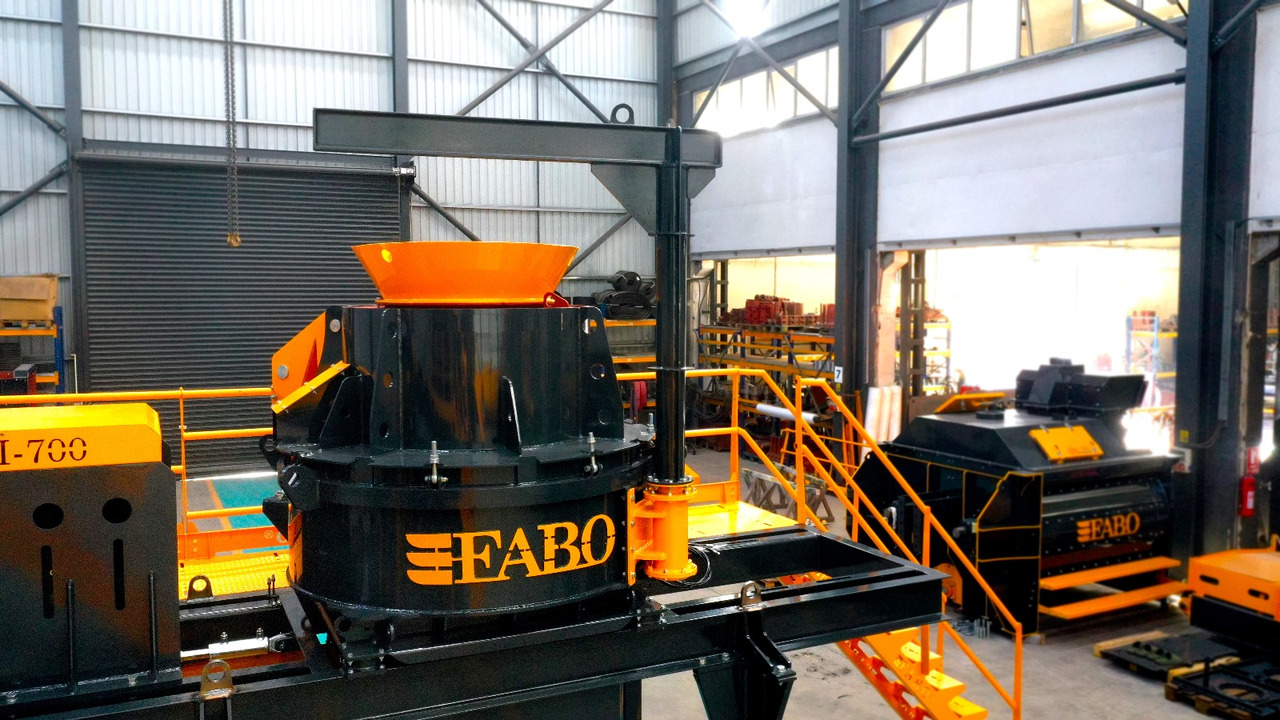

These high-speed crushers are manufactured in two different combinations as open rotor and closed rotor. Vertical shaft impact crushers (VSI) are designed with a unique rock-on-rock crushing principle, which significantly reduces the wear costs while offering superior cubical shape for the best quality fine aggregate production. The fact that it reduces their service requirements and times, and to increase their crushing performance with their low investment costs.

VSI-1000 technical specifications:

Model: VSI-1000 OR

Capacity: 150-400 T/H

Rotor Size: Ø 1000mm

Maximum Feeding: 100mm

Motor Power: 2 x 200-250 kW

Speed: 50 – 70 ms

Weight: 19000 kg

General Specifications and Features:

– Fine product, low wear cost, cubic shape, application flexibility and maintainability.

– Rotor and crushing chute with stress relieved welding

– Inner surfaces of the crusher is coated with wear resistant lining plates

– Hydraulic opening cap

– Automatic lubrication system
