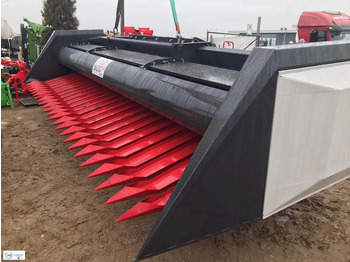

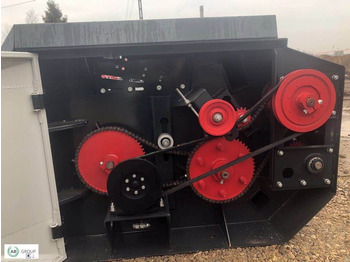

Sunflower attachment for Agrospecmash SZS-6 harvester - direct mounting- Construction width 6 m- Working capacity (at V=8 km/h) 4.8 ha/h- Speed: working speed: -to 9 km/h transport speed: -on general roads 20 km/h -on moving between fields and on dirt roads 12 km/h- Installation cut-off height 250-800 mm- Cutting apparatus: finger (double steel or cast iron fingers closed with inserts)- Knife stroke 85 mm- Knife drive MPN (planetary gearbox)- Knife cycle 470 cycles / min- Weight of the heder (total) / (including the weight of the adapter) 2130 ± 50 kg / 175 ± 5 kg- Distance between stalks 228.6 mm- Operator 1 person (tractor driver)- Overall dimensions in working position (without harvester): -length 2260 ± 50 mm -width 6390 ± 50 mm -height 1195 ± 50 mmInstallation complexity at the site of use, not more than 2 people / hGround clearance, not less - on the harvester
More information
Field of application: Agriculture
Technical condition: very good
Visual appearance: very good
Serial number: 6
Please contact Maciej Borkowski (english, polski) (+48 601930450, office@ab-group.com.pl) or Joanna Jastrzębska (polski) (+48 606320720, office@ab-group.com.pl) for more information
